- 6' - Monitoring Buoy for rivers and channels -

APPLICATIONS.

All maritime IALA operations.
Combined cardinal & lateral buoyage system.
Water monitoring

SPECIFICATION -

L.O.A. 6 mt - 18'
Beam 4 mt - 13' - Max. external size -
Floating capacity: 1,000 Kg - 2,000 lbs.
Weight in air: 1.200 Kg - 2,400 lbs.

Focal Plane : 3,20 mt over water level - 10' approx.
Constructon material: steel.
Electronic box: marine steel

STANDARD EQUIPMENT - Included -

High Energy radar reflector.
Day mark
6" lantern with bi-filament lamp.
100 Amp. 12 Volt rechargeable sealed accumulator.
n. 2 x 18 watt solar panels.
n. 1 charge regulator.
Ballast: No. 20 x 30 Kg. each concrete modular elements.
Dead weight: related to stream Max. speed.

NAVIGATIONAL AIDS - OPTIONAL -

Fog Signal
# 4 - Places Automatic Lampcharger
# 6 - Places Automatic Lampcharger

OPTIONAL: METEREOLOGICAL SENSORS

Dew point
Solar Radiation
Tipping bucket rain gauge
Wind direction and speed
Temperature: min. / Max.
Fog density
Humidity
Pressure
etc. on request.

OPTIONAL: WATER SENSORS

Sea temperature
Stream: direction and speed
PH
REDOX
Temperature
Salinity
etc. on request.

DATA LINK

On board data processor unit.
Radio link - two way -
Main control station radio link : up to 50 buoys.

PICTURES

Cod.22.1

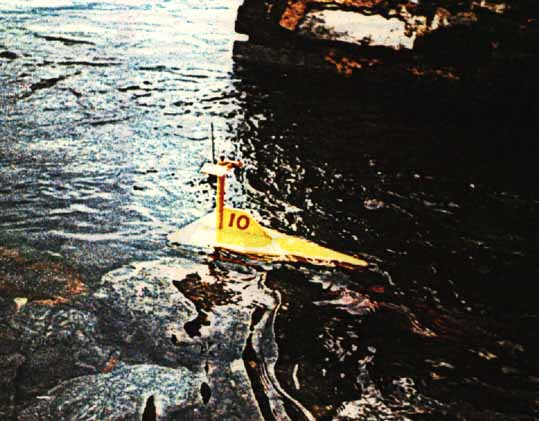

Floating Buoy -

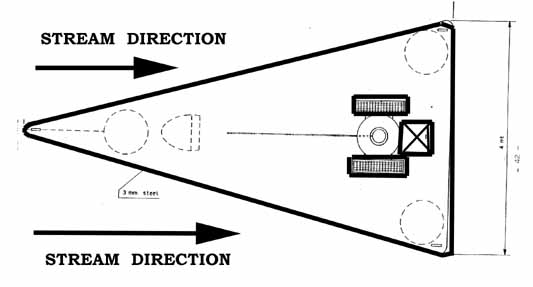

- Top View -

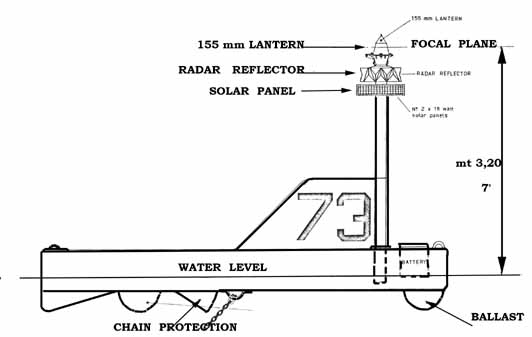

- Lateral View -
