- 6' - INLAND WATERS Data Collection Buoy - 1975-1976 -

APPLICATIONS.


All maritime IALA operations.
Combined cardinal & lateral buoyage system.
Water monitoring of inland waters.

SPECIFICATION -


Diamater: Body: 1,80 mt - 6'
Diameter: 2,10 mt - 7' - Max. external size -
Floating capacity: 200 Kg - 400 lbs
Weight in air: 800 Kg - 1,600 lbs.

Focal Plane : 1,2 mt over water level - 3' approx.
Constructon material: steel.
Electronic box: marine steel

STANDARD EQUIPMENT - Included -

High Energy radar reflector.
Day mark
6" lantern with bi-filament lamp.
100 Amp. 12 Volt rechargeable sealed accumulator.
n. 4 x 9 watt solar panels.
n. 1 charge regulator.
Ballast: No. 10 x 30 Kg. each concrete modular elements.
Dead weight: 500 Kg - 1,000 lbs.

NAVIGATIONAL AIDS - OPTIONAL -


Fog Signal
# 4 - Place Automatic Lampcharger
# 6 - Place Automatic Lampcharger

OPTIONAL: METEREOLOGICAL SENSORS LIST


Dew point
Solar Radiation
Tipping bucket rain gauge
Wind direction and speed
Temperature: min. / Max.
Fog density
Humidity
Pressure
etc. on request.

OPTIONAL: WATER SENSOR's LIST


Sea temperature
Stream: direction and speed
PH
REDOX
Temperature
Salinity
etc. on request.

DATA LINK

On board data processor unit.
Radio link - two way -
Main control station radio link : up to 50 buoys.


Cod.22.1

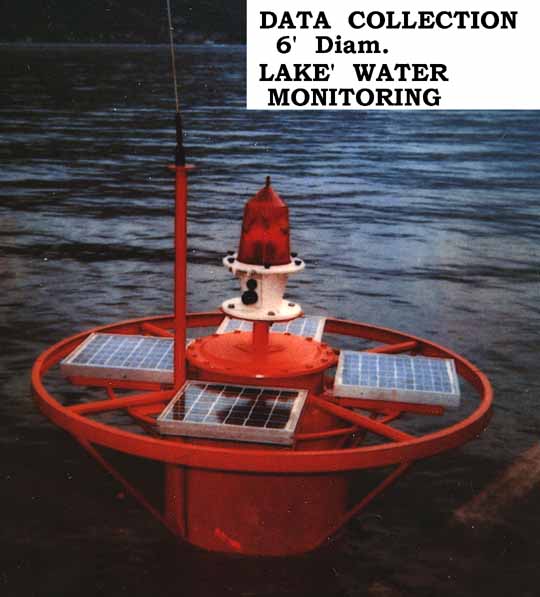

Installed Buoy - Italy location -
