"AQUARIUS" Inc. -

Shipping Company

- We comply with both the EC and Italian EPA directives -
- Ships are classed at Lloyd's.-

Click on: for Plant & Vessel environmental specification
Clicca su: Specifiche e dati tecnici ambientali

Mobile plants: Ro-Ro Ferry list

" KALOA " Ferry

Plant type: Hypobaric gasification
Suitable to treate:Toxic Waste - Powder generated by steel fournaces - Hospital Waste - Infectious - Waste
Treatment capacity: 1,000 Kg/h ( 2,000 lbs/h) x 7,000 h. each year
Production of: Vitrified inert material
Expecting Treatment Starting Date: November 2000
Construction stage ( May 2000 ) : 95% ready

Minimum Waste Quantity :
Domestic Waste + Toxic Waste : 300 Ton. "SPOT" with not more than 150 Ton of domestic waste.
Steel-Powder, Hospital Waste, Toxic-Waste: 300 Ton. "SPOT" for 15 working days operation.

Vessel specification. : ( Preliminary )
L.O.A.: 57 mt - 190 '.
Beam : 12. mt - 40'
Draft : 3,50 mt - 12'
Max. Displacement: 773 Ton.
Cruising Range: 3,000 nml
Cruising Speed - 12 Kts
Engines: 2 x 1,400 HP
Bow-Thursters: 1 x 150 HP
Bow side ramp: 5 mt (L) x 4.50 mt (W)

" KALIKO " Ferry

Plant type: Hypobaric Pyrolysis
Suitable to treate: Waste-tires - Indian' rubber waste
Tires: Max. diameter: 4' ( 120 cm )
Treatment capacity: 1,000 Kg/h ( 2,000 lbs/h) x 7,000 h. each year
Production of: Pyro-oil
Expecting Treatment Starting Date: January / February 2001
Plant Construction stage ( May 2000 ): 40% ready

Minimum Waste Quantity : 300 Ton. "SPOT" of waste-tires.( 15 working days operation)

Vessel specification. :
L.O.A.: 57 mt - 190 '.
Beam : 12.00 mt - 40'
Draft : 3,50 mt - 12'
Max. Displacement: 900 Ton.
Cruising Range: 3,000 nml
Cruising Speed - 12 Kts
Engines: 2 x 1,400 HP CAT
Diesel fuel: 29 + 40 Tons.
Bow-Thursters: 1 x 150 HP
D1 Storage tank: 12 Tons
D2 Storage tank: 52 Tons
D4 Storage tank 32 Tons
Charcoal Storage hold: 20 cu.mt
Bow side ramp: 5 mt (L) x 4.50 mt (W)
Manufactured by: Jhon I. Thornycroft & Co. Ltd - Southampton
Year of Construction: 1959
1995: New CAT Engines
Crew accomodation: 11 places

Year 2000 - Vessel status

Class: 100 - A - 1.1 - Nav S; Tr ( ro-ro) TP
Register: RINA
PAX max. loading capacity: 600
Authorized for Class 2 dangerous transports

With the new gasification plant installed:


New Class: 100 . A . ( T )


" Chemical Process Plant Installed for operation only when moored in Harbour.
New Ship Register: Lloyd's

PICTURES without the plant fitted

ref.43.4

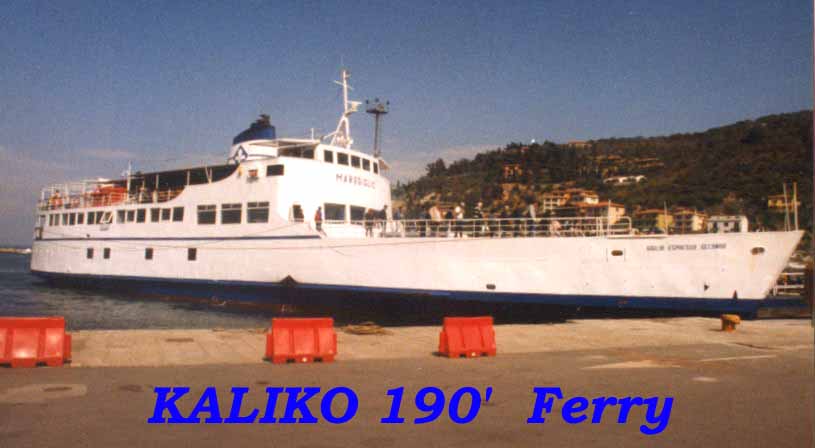

Lateral view - Vista laterale -
FWD deck - Ponte di carico a prua -

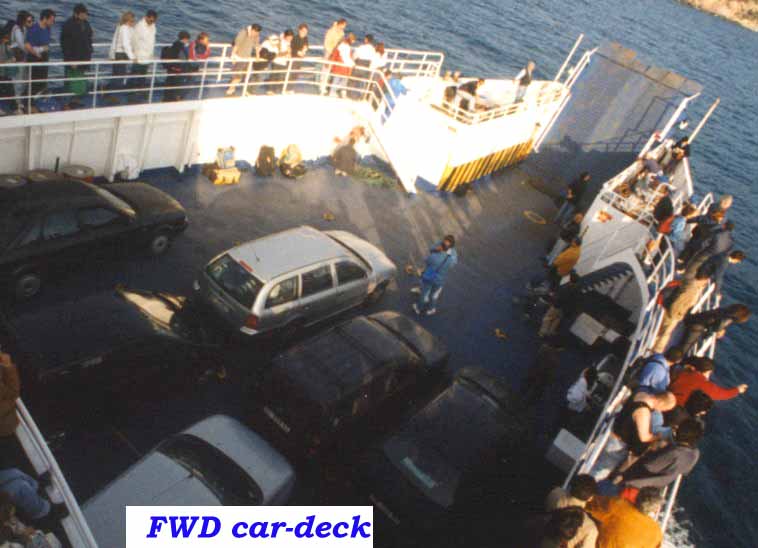

FWD - Car deck - Ponte principale -

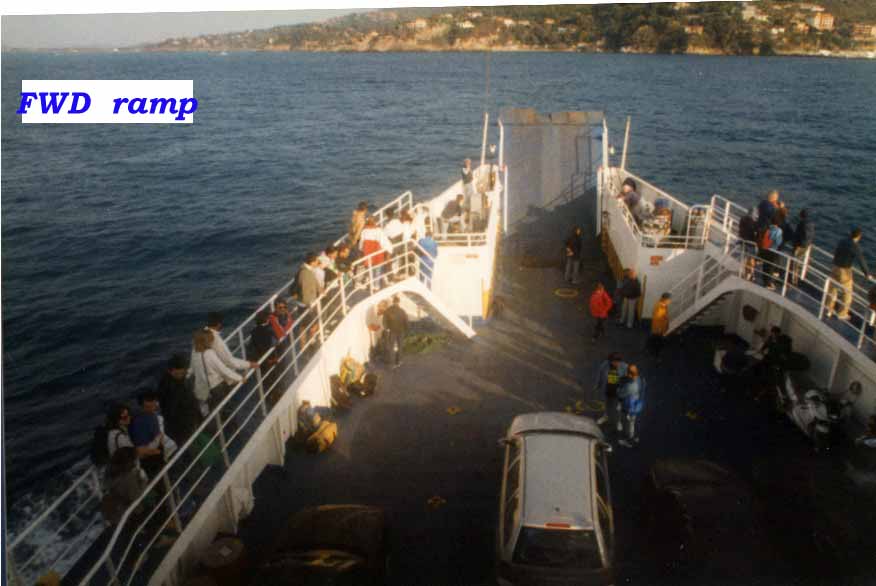

FWD Ramp - Rampa di carico -
At cruising - Bow side - - In Navigazione: Vista di prora -

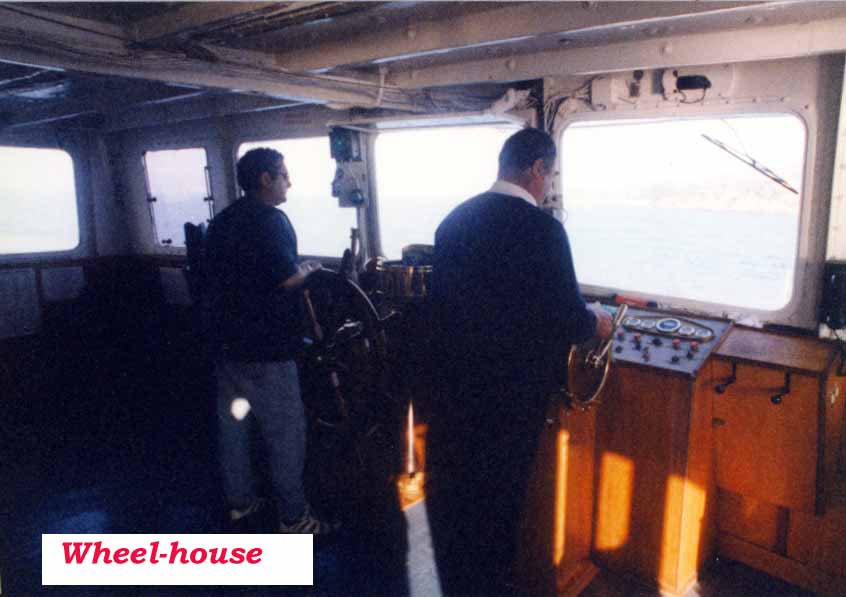

Wheel - House - Plancia -

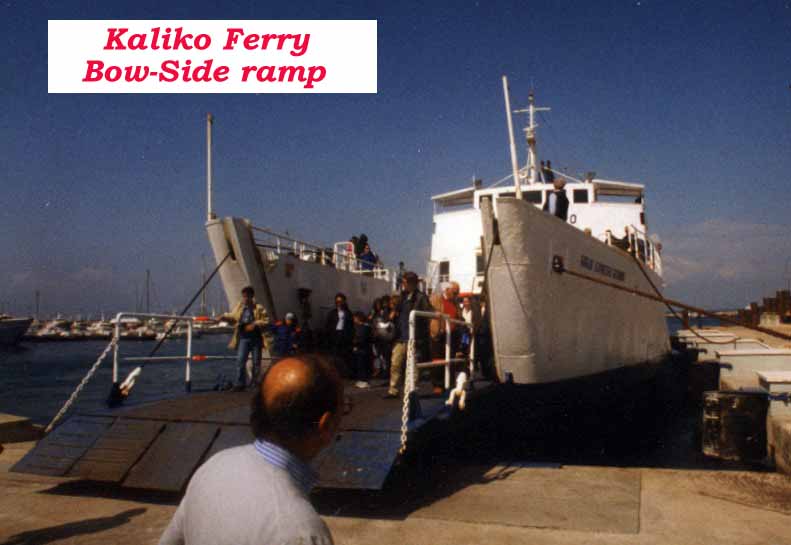

Bow side ramp - Extended - Vista della rampa in estensione -

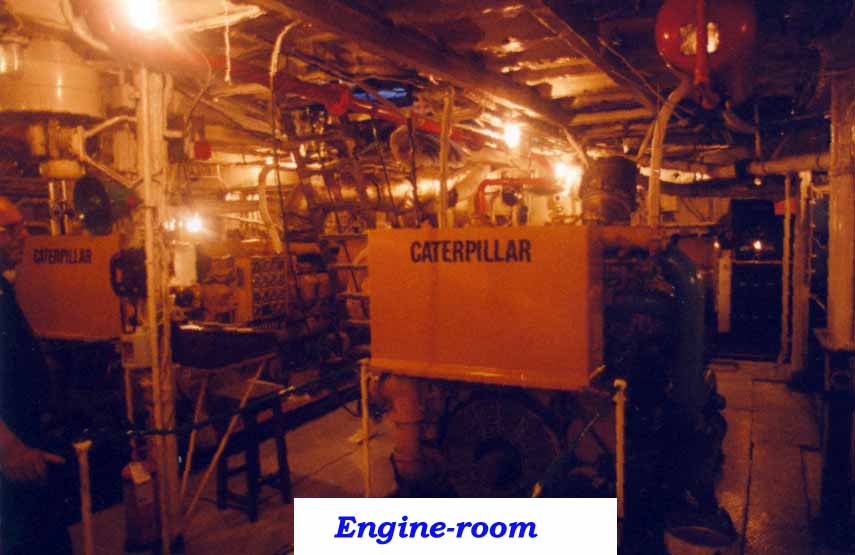

Engine room - Sala macchine -

" KYONA " Ferry

Plant type: Hypobaric Pyrolysis
Suitable to treate: Waste-tires - Indian' rubber waste
Tires: Max. diameter: 4' ( 120 cm )
Treatment capacity: 1,000 Kg/h ( 2,000 lbs/h) x 7,000 h. each year
Production of: Pyro-oil
Expecting Treatment Starting Date: January 2001
Plant Construction stage ( May 2000 ): 40% ready

Minimum Waste Quantity : 300 Ton. "SPOT" of waste-tires.( 15 working days operation)

Vessel specification. :
L.O.A.: 50 mt - 150 '.
Beam : 14.10 mt - 47'
Draft : 2,10 mt - 7'
Max. Displacement: 600 Ton.
Cruising Range: 3,000 nml
Cruising Speed - 12 Kts
Engines: 2 x 1,200 HP
Diesel fuel: 52 Tons.
Bow-Thursters: 4 x 150 HP
D1 Storage tank: 24 Tons
D2 Storage tank: 108 Tons
D4 Storage tank 64 Tons
Charcoal Storage hold: 40 cu.mt
Stern side ramp: 4 mt (L) x 3 mt (W)

" CYVADIER " Ferry

Plant type: Hypobaric Pyrolysis
Suitable to treate: Waste-tires - Indian' rubber waste
Tires: Max. diameter: 8' ( 240 cm )
Treatment capacity: 2,000 Kg/h ( 4,000 lbs/h) x 7,000 h. each year
Production of: Pyro-oil
Expecting Treatment Starting Date: January 2001
Plant Construction stage ( May 2000 ) : 40% ready

Minimum Waste Quantity : 700 Ton. "SPOT" of waste-tires.( 15 working days operation)

Vessel specification. :
L.O.A.: 50 mt - 150 '.
Beam : 14.10 mt - 47'
Draft : 2,40 mt - 8'
Max. Displacement: 650 Ton.
Cruising Range: 3,000 nml
Cruising Speed - 10 Kts
Engines: 2 x 1,200 HP
Diesel fuel: 52 Tons.
Bow-Thursters: 4 x 150 HP
D1 Storage tank: 24 Tons
D2 Storage tank: 108 Tons
D4 Storage tank 64 Tons
Charcoal Storage hold: 40 cu.mt
Stern side ramp: 4 mt (L) x 3 mt (W)

" AMANI " Ferry

Plant type: Hypobaric Pyrolysis
Suitable to treate: Waste-tires - Indian' rubber waste
Tires: Max. diameter: 8' ( 240 cm )
Treatment capacity: 3,000 Kg/h ( 6,000 lbs/h) x 7,000 h. each year
Production of: Pyro-oil
Expecting Treatment Starting Date: January 2001
Plant Construction stage ( May 2000 ) : 40% ready

Minimum Waste Quantity : 1,000 Ton. "SPOT" of waste-tires.( 15 working days operation)

Vessel specification. :
L.O.A.: 72 mt - 240 '.
Hull Length: 70 mt -
Beam : 11.50 mt - 38' approx.
Draft : 2,40 mt - 8'
Draft max. 23,60 - 12'
Max. Displacement: 800 / 860 Ton.
Cruising Range: 3,000 nml
Cruising Speed - 10 Kts
Engines: 2 x 2,500 HP
Diesel fuel: 52 Tons.
Bow-Thursters: 8 x 150 HP
D1 Storage tank: 36 Tons
D2 Storage tank: 162 Tons
D4 Storage tank 96 Tons
Charcoal Storage hold: 60 cu.mt
Stern side ramp: 4 mt (L) x 3 mt (W)

"KYONA" and "CYVADIER" Sister ships - General layout -

Cod 43.2

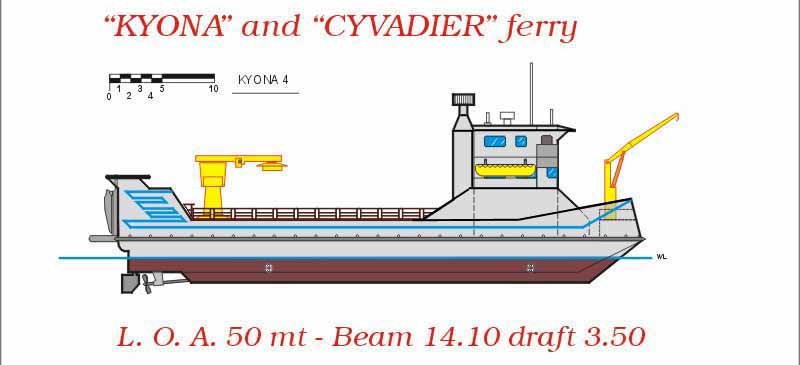

Lateral view - Vista laterale -

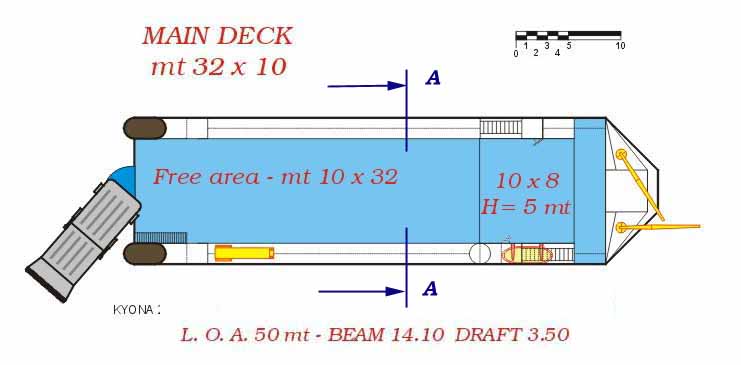

Main deck - free area - - Ponte principale - Senza impianto -

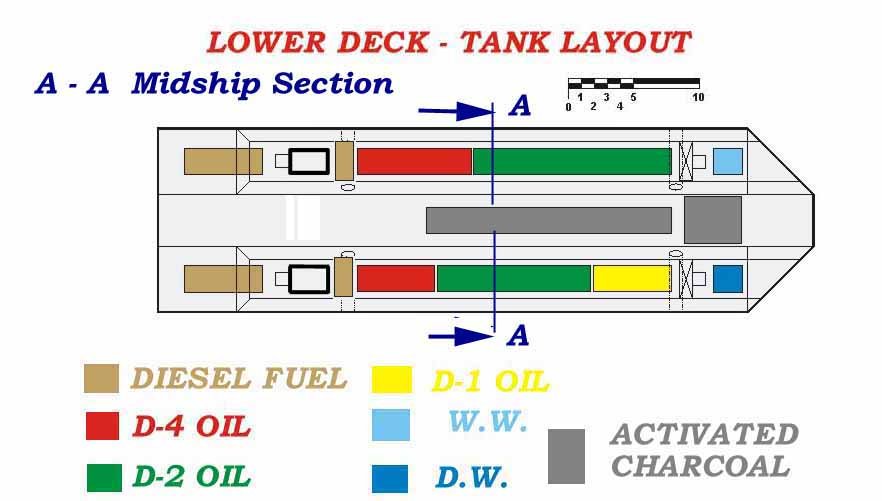

Lower deck - tanks layout - - Ponte inferiore - Serbatoi e depositi

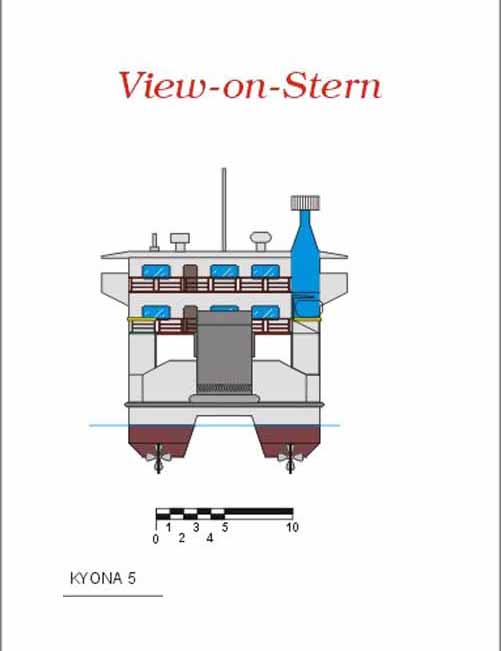

View - on - stern - Vista da poppa -

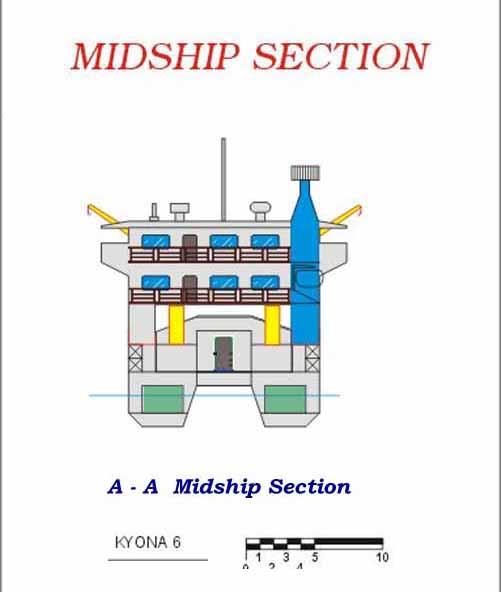

Midship section - Sezione centrale -

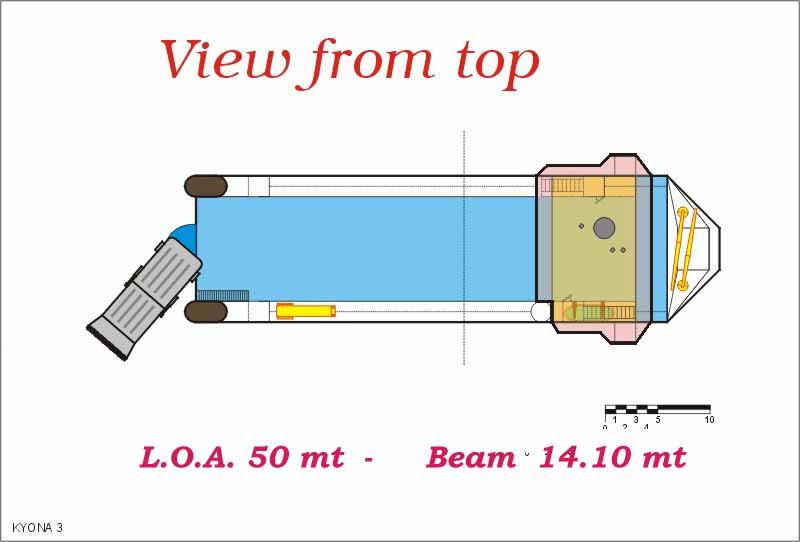

View - from - Top - Vista dall'alto -

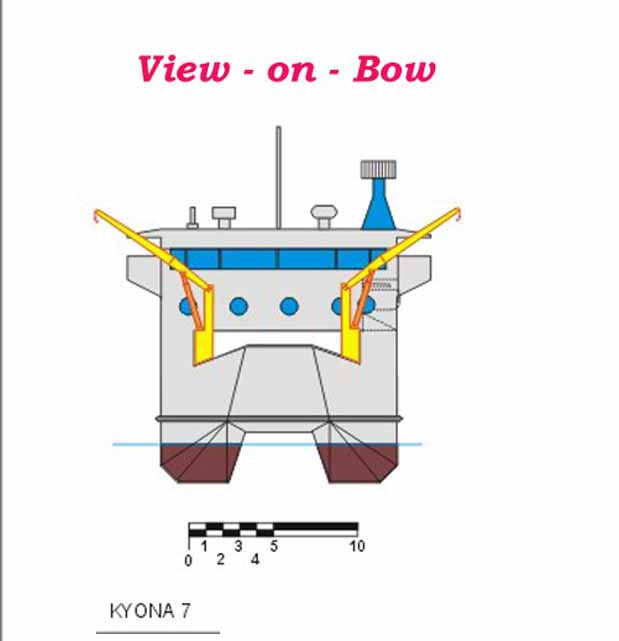

View - on - Bow - Vista da prua -

Process plant layout

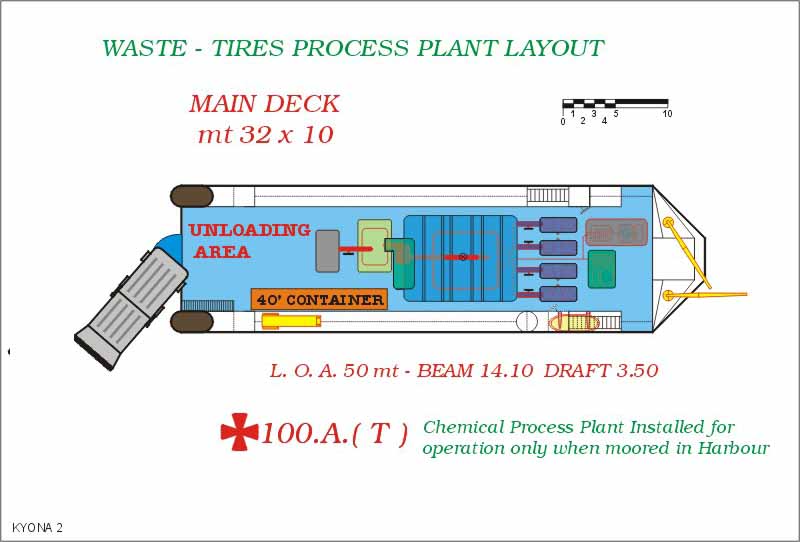

Process Plant on the Main deck - Ponte principale con impianto-

Lateral View with Process Plant - Vista di lato con impianto -

" AMANI " Ferry - General layout -

Cod 43.3

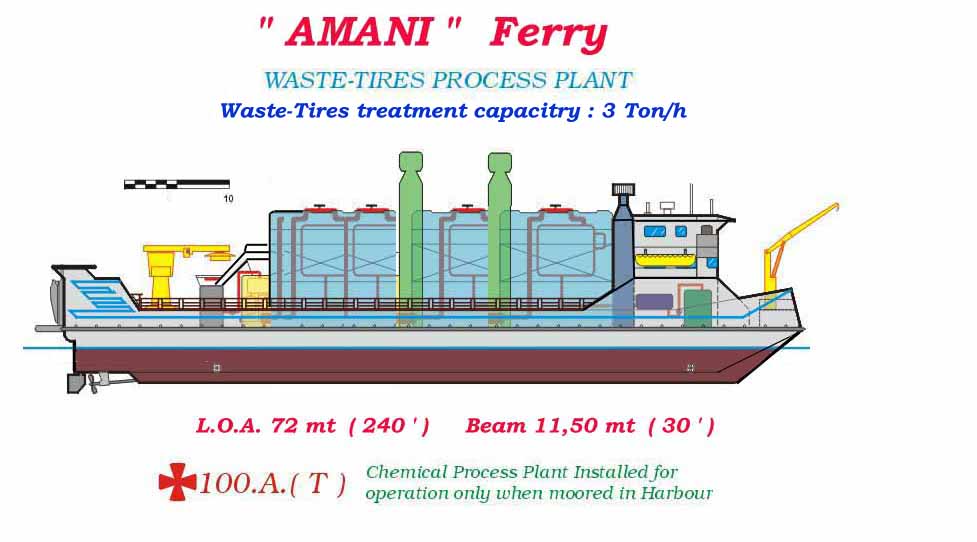

Lateral view with 3 T/h gasification plant - Vista laterale con impianto installato -

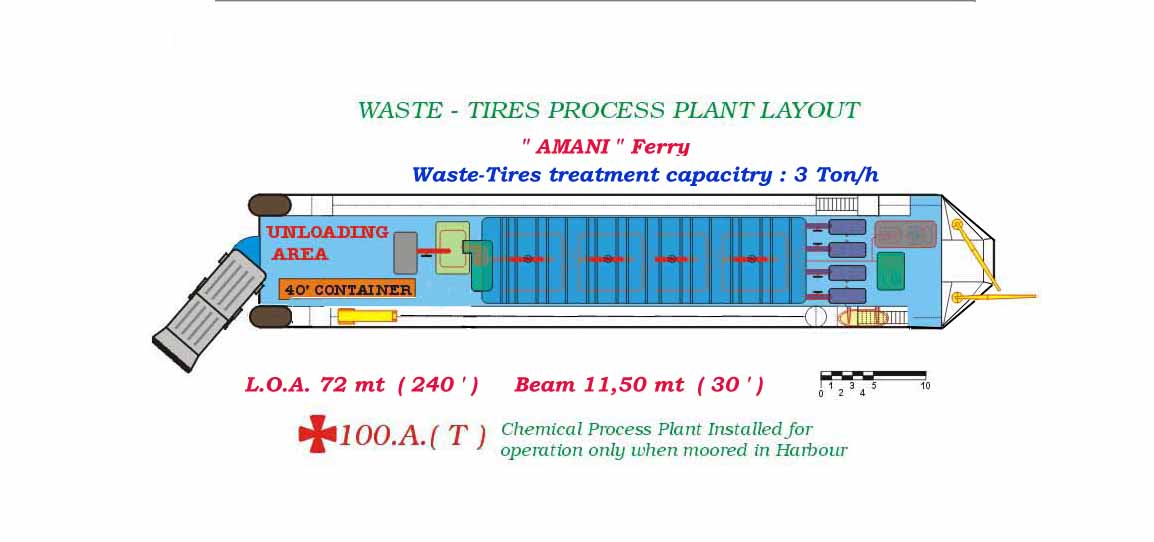

Main deck with 3 T/h gasification plant - - Ponte principale - Con impianto -
